Oil Mud Products

Organophilic Clay

Organophilic Clay ORGEL is an organically modified bentonite used as a gelling agent and viscosifier for primarily diesel-based drilling fluids.

If you have any questions, feedback or comments, please fill out the form below and we will reply you back as soon as possible.

Inquire Now

Like this page? Share it with your friends!

Description

Organophilic Clay ORGEL is an organically modified bentonite used as a gelling agent and viscosifier for primarily diesel-based drilling fluids.

Specification

Properties

Specification

Appearance

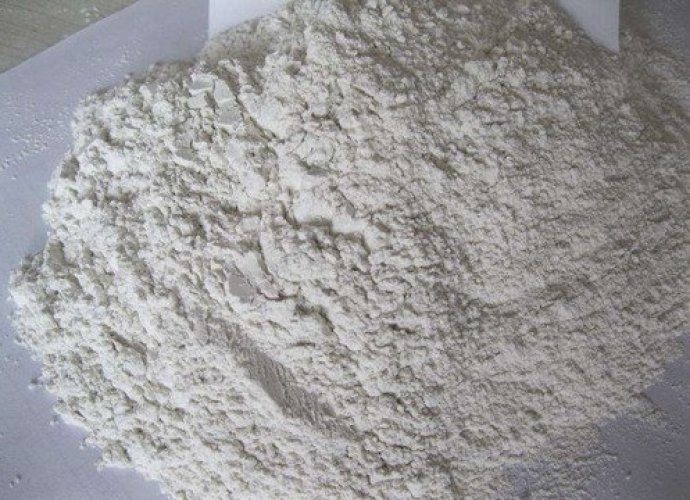

buff to tan powder

Moisture, %

2.0-5.0

Sieve Analysis, (% through 100 mesh)

95 min.

YP, lb/100ft2

17 minimum



Application & Advantages

Application/Function
Organophilic Clay ORGEL is used in the 2-10lb/bbl (5.7-28.5 kg/m3) range depending on the desired viscosity properties, mixing system, and temperature. Higher concentrations are used when preparing spotting fluids, packer fluids or other special systems. Maximum viscosity is normally attained after a complete circulation of the fluid thru the bit, so care must be taken not to over-treat upon initial mixing.


Advantages

Used as a gelling and viscosifier
Oil Based Material
Increase carrying capacity and suspension properties
Improve cutting removal

Recommended Treatment
Organophilic Clay ORGEL is used in the 2-10lb/bbl (5.7-28.5 kg/m3) range depending   on the desired viscosity properties, mixing system, and temperature.



Package

Package and Storage
25kg bags or according to customer's requirement.

Avoid high-intensity extreme pressure and prolonged exposure to strong sunlight. Keep container closed. Keep away from heat, sparks and flames.
